Warm congratulations on the successful acceptance of our company Semi-anechoic chamber project for xFusion research.
超聚變數字技術股份有限公司（以下簡稱 xFusion）成立于2021年，總部位于中國河南省鄭州市鄭東新區北龍湖，主要從事算力基礎設施及相關技術服務。
xFusion Digital Technologies Co., Ltd.,(hereinafter referred to as xFusion) was established in 2021 and is headquartered in Zhengzhou, Henan Province, China, focusing on computing infrastructure and related technologies.
本項目半消聲室由廣州丹品人工環境技術有限公司負責設計、制造及安裝實施。項目建成后，可為相關產品的聲學性能測試提供穩定的實驗環境與技術支持。
The semi-anechoic chamber in this project was designed, manufactured, and installed by GZ DP Anechoic T&E Co., Ltd.. Upon completion, the facility provides a stable environment and technical support for acoustic performance testing.
在滿足項目設計要求（截止頻率 Fc ≤ 100 Hz）的基礎上，經現場測試驗證，本項目半消聲室實際截止頻率可達到 Fc ≤ 50 Hz，相關性能指標優于設計要求，能夠?yàn)榈皖l段聲學測試提供更可靠的測試條件。
While meeting the project requirement of a cut-off frequency of Fc ≤ 100 Hz, on-site measurements show that the chamber achieves an actual cut-off frequency of Fc ≤ 50 Hz, demonstrating performance better than the specified requirement and providing more reliable conditions for low-frequency acoustic testing.
廣州丹品人工環境技術有限公司由從事聲學技術研究與工程應用的專業人員組成，在聲學實驗室設計與建設方面具有豐富經驗。公司具備聲學實驗室建設及測試能力，可開展產品聲學性能檢測及相關服務。
GZ DP Anechoic T&E Co., Ltd. is composed of professionals engaged in acoustic research and engineering applications, with solid experience in acoustic laboratory design and construction.
公司在聲學實驗室系統設計、制造和安裝方面持續進行技術積累，已完成多類聲學環境工程項目，包括消聲室、半消聲室及隔聲室等。
The company has accumulated technical expertise in the design, manufacturing, and installation of acoustic laboratory systems and has completed various acoustic engineering projects, including anechoic chambers, semi-anechoic chambers, and sound insulation rooms.
半消聲室是一種用于聲學測試的實驗環境，可有效減少反射聲對測試結果的影響，廣泛應用于噪聲源聲功率級測量及產品聲學性能測試。
A semi-anechoic chamber is a controlled acoustic environment used to reduce the influence of reflected sound on measurement results. It is widely used for sound power level measurements and product acoustic testing.
在聲學測試系統中，半消聲室的聲學性能直接影響測試結果的準確性，因此在設計與施工過程中需嚴格按照相關標準進行控制。
The acoustic performance of the chamber directly affects measurement accuracy; therefore, relevant standards are strictly followed during design and construction.
配套的噪聲與振動分析系統基于數據采集（DAQ）技術，可實現噪聲與振動信號的采集與分析，為產品研發與質量控制提供數據支持。
The supporting noise and vibration analysis system, based on data acquisition (DAQ) technology, enables signal acquisition and analysis, providing data support for product development and quality control.
主要技術指標
Main Technical Specifications
（1）外界環境噪聲條件：Len(A) ≤ 65 dB(A)，且無明顯異常干擾
本底噪聲：Lgn(A) ≤ 18 dB(A)
（2）截止頻率：
設計指標：Fc ≤ 100 Hz
實測結果：Fc ≤ 50 Hz
(1) External environmental noise condition:Len(A) ≤ 65 dB(A), with no abnormal disturbance
Background noise level:Lgn(A) ≤ 18 dB(A)
(2) Cut-off frequency:
Design requirement: Fc ≤ 100 Hz
Measured performance: Fc ≤ 50 Hz

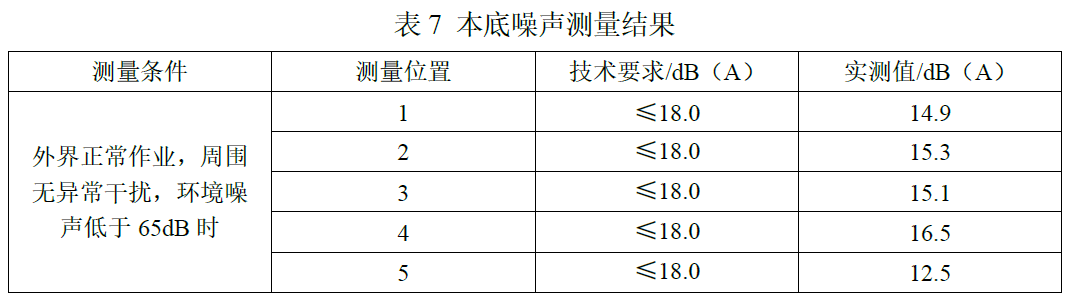

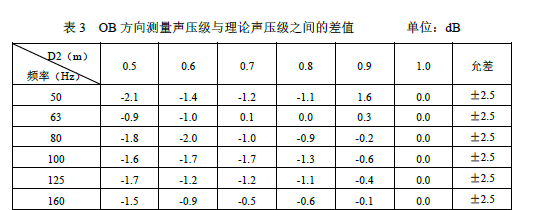

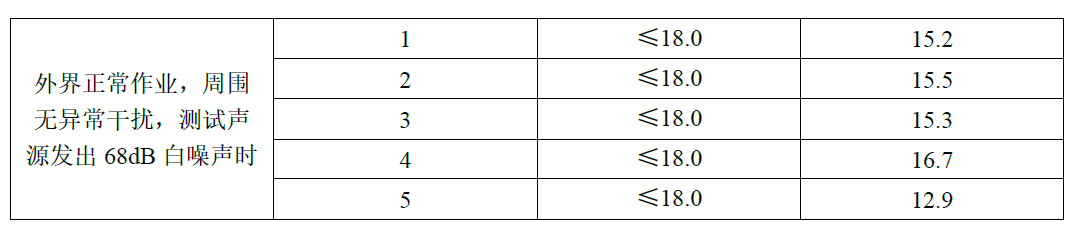

計量驗收
Measurement and Acceptance
（本底噪聲校準結果）
（Base noise calibration results）

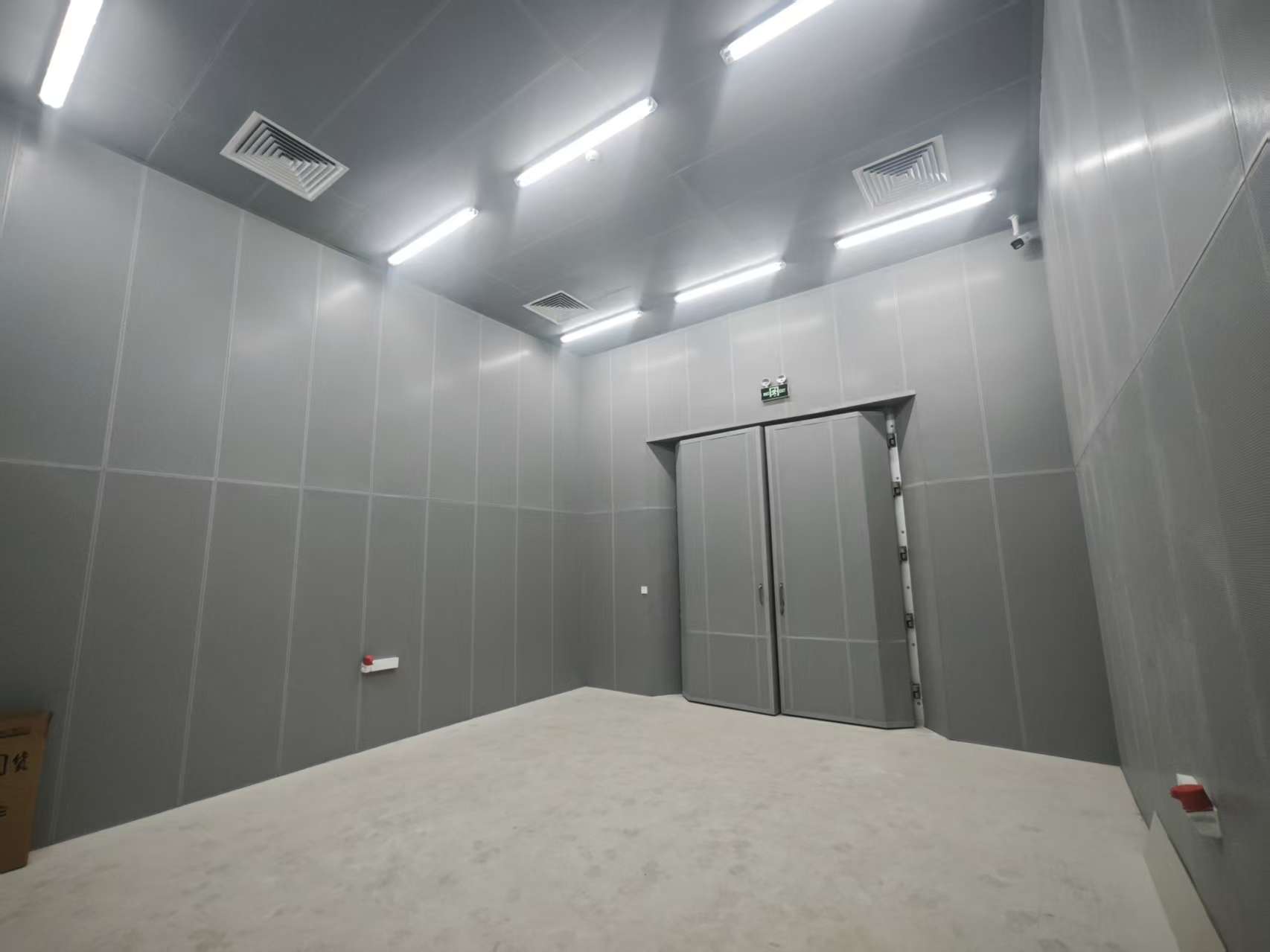

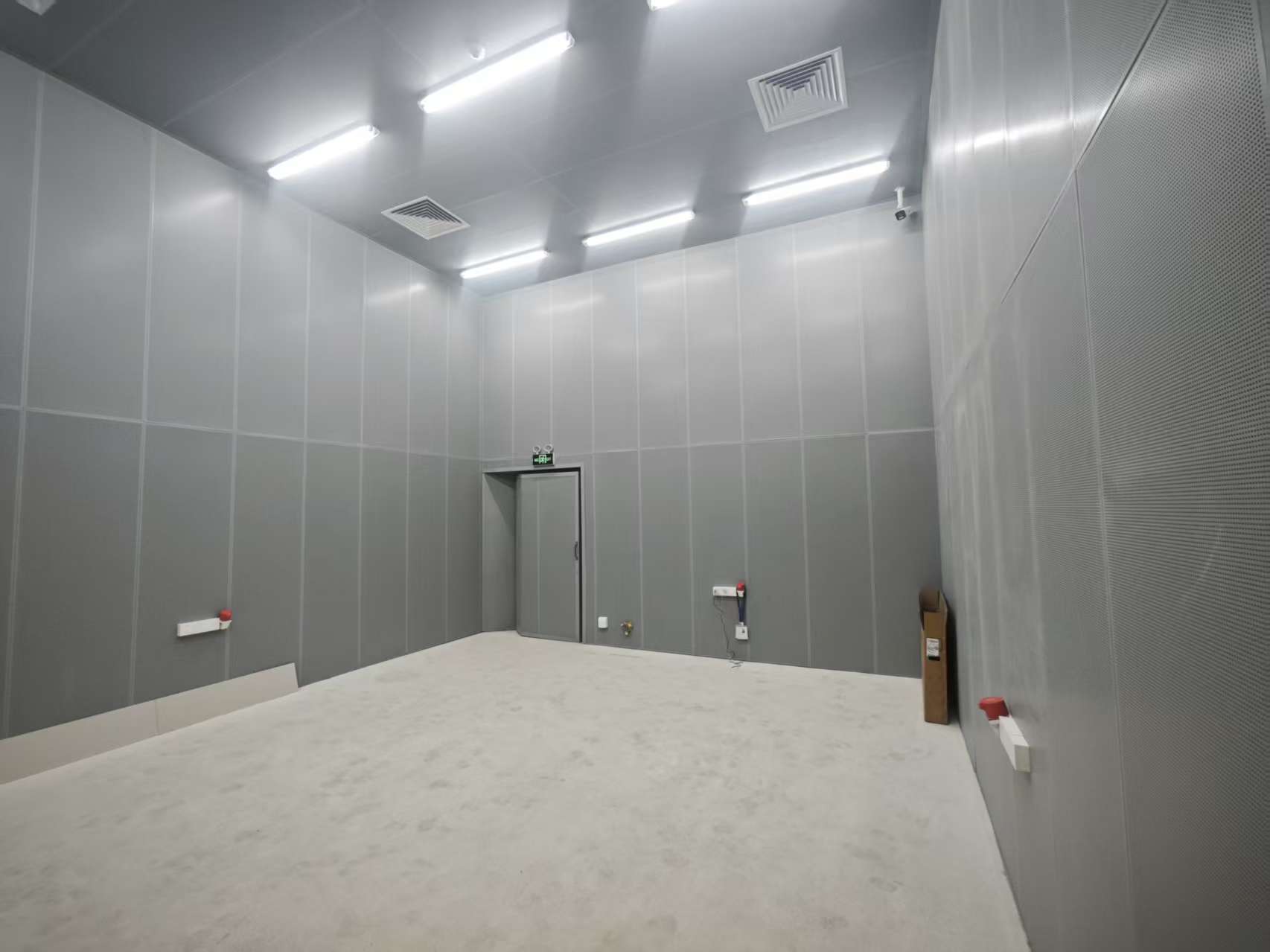

完工照片
Completion photos
